High-Performance Thermoplastic Hydraulic Hoses

Premium Thermoplastic Hydraulic Hoses for Superior Performance

Our thermoplastic hydraulic hoses are expertly designed and engineered to provide flexibility, durability, and exceptional resistance to abrasion, making them ideal for demanding hydraulic system applications. With a bonded construction, our hoses offer superior reliability and performance, delivering long-lasting service even in the most challenging environments.

Competitively priced and manufactured for excellent fluid control, our hydraulic hoses are the optimal choice for industries that demand high-quality, dependable solutions. Twin- and multi-line options are available upon request, providing added versatility to meet your specific needs.

SAE 100R7

SAE 100R7 TWIN

SAE 100R7
NON-CONDUCTIVE

SAE 100R7
Non-Conductive Twin

SAE 100R8

SAE 100R8 TWIN

SAE 100R8
NON-CONDUCTIVE

SAE 100R8
Non-Conductive Twin

SAE 100R18

SAE 100R7

Our line of SAE 100R7 thermoplastic hydraulic hoses are engineered for medium-pressure hydraulic and pneumatic systems, meeting or exceeding SAE 100R7 standards. It features an oil-resistant seamless thermoplastic elastomer inner core, reinforced with high tensile synthetic fiber, and a highly abrasion-resistant polyurethane cover, making it durable in demanding environments. With an operating temperature range of -40°F to +212°F, it’s suitable for a variety of industrial applications.

Download Literature

Recommended for:

Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.

Inner Core:

Oil resistant seamless thermoplastic elastomer tube.

Reinforcement:

Braided high tensile synthetic fiber.

Cover:

Black high abrasion resistant polyurethane.

Temperature Range:

-40 degrees F to +212 degrees F
-40 degrees C to +100 degrees C

Hose Part #	Nominal I.D.		Nominal O.D.		Max Operating Pressure		Min Burst Pressure		Min Bend Radius (In.)	Weight per 100 Ft. (Lbs)
	ln.	mm	ln.	mm	PSI	Bar	PSI	Bar
711-02	1/8	3.18	.320	7.75	3,000	207	12,000	827	1/2	2.5
711A-03	3/16	4.76	.405	10.29	3,000	207	12,000	827	3/4	5.1
711A-04	1/4	6.35	.485	12.30	3,000	207	12,000	827	1-1/4	6.6
711-05	5/16	7.94	.585	14.86	2,500	172	10,000	689	1-3/4	10
711-06	3/8	9.53	.645	16.38	2,250	155	9,000	621	2	10.5
711-08	1/2	12.70	.810	20.57	2,250	135	9,000	552	3	15
711-12	3/4	19.05	1.08	27.43	1,250	86	5,000	345	5	16
711-16	1	25.40	1.38	34.93	1,000	69	4,000	276	6	31.5

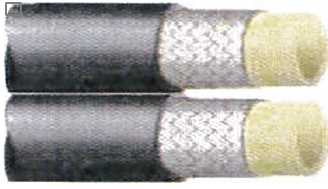

SAE 100R7 TWIN

Thermoplastic Hydraulic Hose SAE 100R7 - 7111T (Black) Twin Line is designed for medium pressure hydraulic and pneumatic systems, meeting or exceeding SAE 100R7 requirements. Ideal for pneumatic or gaseous systems, the hose features a durable inner core made of oil-resistant synthetic polyester tube and is reinforced with braided high tensile synthetic fiber. Its cover is crafted from black, high abrasion-resistant polyurethane, ensuring longevity and performance in demanding environments. The hose operates effectively within a temperature range of -40 degrees F to +212 degrees F (-40 degrees C to +100 degrees C), making it versatile for various industrial applications.

Download Literature

Recommended for:

Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 1 00R? requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.

Inner Core:

Oil resistant synthetic polyester tube.

Reinforcement:

Braided high tensile synthetic fiber.

Cover:

Black high abrasion resistant polyurethane.

Temperature Range:

-40 degrees F to +212 degrees F
-40 degrees C to +100 degrees C

Hose Part #	Nominal I.D.		Nominal O.D.		Max Operating Pressure		Min Burst Pressure		Min Bend Radius (In.)	Weight per 100 Ft. (Lbs)
	In.	mm	ln.	mm	PSI	Mpa	PSI	Mpa
7111-02T	1/8	3.18	.305	7.75	3,000	20.7	12,000	82.7	1/2	6.6
7111A-03T	3/16	4.76	.405	10.29	3,000	20.7	12,000	82.7	3/4	10.2
7111A-04T	1/4	6.35	.485	12.30	3,000	20.7	12,000	82.7	1-1/4	13.2
7111-05T	5/16	7.94	.585	14.86	2,500	17.2	10,000	69	1-3/4	18.6
7111-06T	3/8	9.53	.645	16.38	2,250	15.5	9,000	62.1	2	22
7111-08T	1/2	12.70	.810	20.57	2,000	13.8	8,000	55.2	3	32
7111-12T	3/4	19.05	1.10	27.94	1,250	8.6	5,000	34.5	5	48
7111-16T	1	25.40	1.38	34.93	1,000	6.9	4,000	27.6	6	60

SAE 100R7
NON-CONDUCTIVE

The SAE 100R8 - 8110 Non-Conductive Thermoplastic Hydraulic Hose is engineered for hydraulic and pneumatic systems that require increased pressure ratings from 100R8 standards. Its oil-resistant thermoplastic elastomer inner core is reinforced with braided high tensile aramid fiber, providing strength and flexibility. The non-conductive, high abrasion-resistant polyurethane cover ensures durability and protection, making this hose ideal for demanding industrial applications within a temperature range from -40°F to +212°F (-40°C to +100°C).

Download Literature

Recommended for:

Medium pressure hydraulic and pneumatic systems. Meets or exceeds 100R8 requirements.

Inner Core:

Oil resistant seamless thermoplastic elastomer tube.

Reinforcement:

Braided high tensile aramid fiber.

Cover:

Orange high abrasion resistant polyurethane.

Temperature Range:

-40 degrees F to +212 degrees F
-40 degrees C to +100 degrees C

Hose Part #	Nominal I.D.		Nominal O.D.		Max Operating Pressure		Min Burst Pressure		Min Bend Radius (In.)	Weight per 100 Ft. (Lbs)
	In.	mm	ln.	mm	PSI	Bar	PSI	Bar
7110-02	1/8	3.18	.320	7.75	3,000	207	12,000	827	1/2	2.5
7110A-03	3/16	4.76	.405	10.29	3,000	207	12,000	827	3/4	5.1
7110A-04	1/4	6.35	.486	12.30	3,000	207	12,000	827	1-1/4	6.6
7110-05	5/16	7.94	.585	14.86	2,500	172	10,000	689	1-3/4	10
7110-06	3/8	9.53	.645	16.38	2,250	155	9,000	621	2	10.5
7110-08	1/2	12.70	.810	20.57	2,250	155	9,000	621	3	15
7110-12	3/4	19.05	1.08	27.43	1,250	86	5,000	345	5	16
7110-16	1	25.40	1.38	34.93	1,000	69	4,000	276	6	31.5

SAE 100R7
Non-Conductive Twin

The Non-Conductive Twin Line Thermoplastic Hydraulic Hose, SAE 100R7 - 7110T (Orange), is designed for medium pressure hydraulic and pneumatic systems, meeting or exceeding SAE 100R7 requirements. It features an oil-resistant synthetic polyester inner core and is reinforced with braided high tensile synthetic fiber for durability. The hose is covered with orange non-conductive, high abrasion-resistant polyurethane, ensuring robust performance in various environments. It operates effectively within a temperature range of -40°F to +212°F (-40°C to +100°C).

Download Literature

Recommended for:

Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements.

Inner Core:

Oil resistant synthetic polyester tube.

Reinforcement:

Braided high tensile synthetic fiber.

Cover:

Orange non-conductive high abrasion resistant polyurethane.

Temperature Range:

-40 degrees F to +212 degrees F
-40 degrees C to +100 degrees C

Hose Part #	Nominal I.D.		Nominal O.D.		Max Operating Pressure		Min Burst Pressure		Min Bend Radius (In.)	Weight per 100 Ft. (Lbs)
	ln.	mm	ln.	mm	PSI	Mpa	PSI	Mpa
7110-02T	1/8	3.18	.305	7.75	3,000	20.7	12,000	82.7	1/2	5
7110A-03T	3/16	4.76	.405	10.29	3,000	20.7	12,000	82.7	3/4	10.2
7110A-04T	1/4	6.35	.485	12.30	3,000	20.7	12,000	82.7	1-1/4	13.2
7110-05T	5/16	7.94	.585	14.86	2,500	17.2	10,000	69	1-3/4	20
7110-06T	3/8	9.53	.645	16.38	2,250	15.5	9,000	62.1	2	21
7110-08T	1/2	12.70	.810	20.57	2,250	13.8	9,000	55.2	3	30
7110-12T	3/4	19.05	1.10	27.94	1,250	8.6	5,000	34.5	5	32
7110-16T	1	25.40	1.38	34.93	1,000	6.9	4,000	27.6	6	63

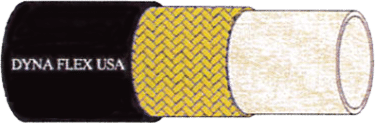

SAE 100R8

The SAE 100R8 - 811 Thermoplastic Hydraulic Hose is designed for hydraulic and pneumatic systems that require increased pressure ratings from SAE 100R7. It features an oil-resistant seamless thermoplastic elastomer core, reinforced with braided high tensile aramid fiber for strength and durability. The high abrasion-resistant polyurethane cover ensures long-lasting performance in demanding environments, operating within a temperature range from -40°F to +212°F (-40°C to +100°C).

Download Literature

Recommended for:

Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R8 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.

Inner Core:

Oil resistant seamless thermoplastic elastomer tube.

Reinforcement:

Braided high tensile aramid fiber.

Cover:

Black high abrasion resistant polyurethane.

Temperature Range:

-40 degrees F to +212 degrees F
-40 degrees C to +100 degrees C

Hose Part #	Nominal I.D.		Nominal O.D.		Max Operating Pressure		Min Burst Pressure		Min Bend Radius (In.)	Weight per 100 Ft. (Lbs)
	In.	mm	ln.	mm	PSI	Bar	PSI	Bar
811-03	3/16	4.76	.405	10.29	5,000	1,379	20,000	1,379	3/4	5.5
811-04	1/4	6.35	.485	12.30	5,000	1,379	20,000	1,379	1-1/4	6.6
811-06	3/8	9.53	.645	16.38	4,000	1,103	16,000	1,103	2	10.5
811A-08	1/2	12.70	.760	19.30	3,000	965	14,000	965	3	12.3

SAE 100R8 TWIN

The Twin Line Thermoplastic Hydraulic Hose, designated as SAE 100R8 - 811T (Black) Twin Line, is engineered for medium pressure hydraulic and pneumatic systems, meeting or surpassing SAE 100R8 standards. Ideal for pneumatic or gaseous applications, perforated (pin-pricked) hose variants are recommended. Its construction features an oil-resistant synthetic polyester inner core, reinforced with braided high-tensile aramid fiber for robust durability. The hose is shielded by a black, highly abrasion-resistant polyurethane cover, ensuring resilience in diverse operational environments. It operates reliably within a temperature range spanning from -40 degrees F to +212 degrees F (-40 degrees C to +100 degrees C).

Download Literature

Recommended for:

Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R8 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose.

Inner Core:

Oil resistant synthetic polyester tube.

Reinforcement:

Braided high tensile aramid fiber.

Cover:

Black high abrasion resistant polyurethane.

Temperature Range:

-40 degrees F to +212 degrees F
-40 degrees C to +100 degrees C

Hose Part #	Nominal I.D.		Nominal O.D.		Max Operating Pressure		Min Burst Pressure		Min Bend Radius (In.)	Weight per 100 Ft. (Lbs)
	ln.	mm	ln.	mm	Mpa	Bar	Mpa	Bar
811-03T	3/16	4.76	.405	10.29	5,000	34.5	20,000	137.9	3/4	11
811-04T	1/4	6.35	.485	12.30	5,000	34.5	20,000	137.9	1-1/4	13.2
811-06T	3/8	9.53	.645	16.38	4,000	27.6	16,000	110.3	2	22
811A-08T	1/2	12.70	.760	19.30	3,500	24.1	14,000	96.8	3	25.2

SAE 100R8
NON-CONDUCTIVE

The SAE 100R7 & SAE100R8 (Orange) Twin-Line Diving Hose is designed for medium pressure hydraulic systems. It combines a 1-inch SAE 100R7 hose with a 3/4-inch SAE 100R8 hose. The inner core features an oil-resistant seamless thermoplastic elastomer tube. High tensile synthetic fiber provides reinforcement, while the cover is made of bonded orange, non-conductive, high abrasion-resistant polyurethane that resists mold and fungus. An anti-stick additive ensures a snag-resistant, slick surface. This hose operates effectively in temperatures ranging from -40 degrees F to +212 degrees F (-40 degrees C to +100 degrees C).

Download Literature

Recommended for:

Medium pressure hydraulic systems. Twin-line consists of a 1 inch SAE 100R7 hose fused with a 3/4inch SAE 100R8 hose.

Inner Core:

Oil resistant seamless thermoplastic elastomer tube.

Reinforcement:

High tensile synthetic fiber.

Cover:

Bonded orange, non-conductive, high abrasion resistant polyurethane mold and fungus resistant polyether-urethane. Features an anti-stick additive for a snag resistant, slick surface.

Temperature Range:

-40 degrees F to +212 degrees F
-40 degrees C to +100 degrees C

Hose Part #	Nominal I.D.		Nominal O.D.		Max Operating Pressure		Min Burst Pressure		Min Bend Radius (In.)	Weight per 100 Ft. (Lbs)
	ln.	mm	ln.	mm	PSI	Bar	PSI	Bar
8110-03	3/16	4.76	.405	10.29	5,000	345	20,000	1,379	3/4	5.5
8110-04	1/4	6.35	.485	12.30	5,000	345	20,000	1,379	1-1/4	6.6
8110-06	3/8	9.53	.645	16.38	4,000	276	16,000	1,103	2	10.5
8110A-08	1/2	12.70	.760	19.30	3,500	241	14,000	965	3	12.3
8110-2P-12	3/4	19.0	1.18	30.10	2,500	155	9,000	621	5	30

SAE 100R8
NON-CONDUCTIVE Twin

The Non-Conductive Twin Line Thermoplastic Hydraulic Hose, designated as SAE 100R8 - 8110T (Orange), is designed for medium pressure hydraulic and pneumatic systems, meeting or surpassing SAE 100R8 requirements. Its inner core consists of an oil-resistant synthetic polyester tube, reinforced with braided high tensile aramid fiber for added strength. The hose is shielded by an orange, highly abrasion-resistant polyurethane cover, ensuring durability in demanding environments. It operates effectively within a wide temperature range from -40°F to +212°F (-40°C to +100°C), making it versatile for various industrial applications.

Download Literature

Recommended for:

Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 1 00R8 requirements.

Inner Core:

Oil resistant synthetic polyester tube.

Reinforcement:

Braided high tensile aramid fiber.

Cover:

Orange high abrasion resistant polyurethane.

Temperature Range:

-40 degrees F to +212 degrees F
-40 degrees C to +100 degrees C

Hose Part #	Nominal I.D.		Nominal O.D.		Max Operating Pressure		Min Burst Pressure		Min Bend Radius (In.)	Weight per 100 Ft. (Lbs)
	ln.	mm	ln.	mm	Mpa	Bar	Mpa	Bar
8110-03T	3/16	4.76	.405	10.29	5,000	34.7	20,000	137.9	3/4	11
8110-04T	1/4	6.35	.485	12.30	5,000	34.7	20,000	137.9	1-1/4	13.2
8110-06T	3/8	9.53	.645	16.38	4,000	27.6	16,000	110.3	2	22
8110A-08T	1/2	12.70	.760	19.30	3,500	24.1	14,000	96.6	3	25.2
8110-2P-12T	3/4	19.0	1.18	30.10	2,250	15.5	9,000	62.1	5	60.8

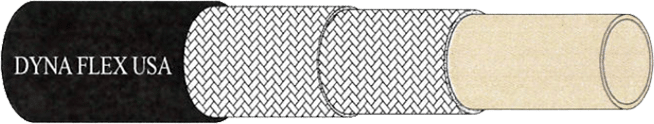

SAE 100R18

The SAE 100R18 - 1811 Thermoplastic Hydraulic Hose is ideal for medium-pressure lift trucks and equipment, specifically for over-the-sheave (pulley) systems. It features an oil-resistant seamless thermoplastic elastomer inner core, reinforced with braided high tensile synthetic fiber for added strength. Covered with high abrasion-resistant polyurethane, this hose maintains performance and durability across a temperature range from -40°F to +212°F (-40°C to +100°C).

Download Literature

Recommended for:

Medium pressure lift truck for over the sheave (pulley) type system.

Inner Core:

Oil resistant seamless thermoplastic elastomer tube.

Reinforcement:

Braided high tensile synthetic fiber.

Cover:

Black high abrasion resistant polyurethane.

Temperature Range:

-40 degrees F to +212 degrees F
-40 degrees C to +100 degrees C

Hose Part #	Nominal I.D.		Nominal O.D.		Max Operating Pressure		Min Burst Pressure		Min Bend Radius (In.)	Weight per 100 Ft. (Lbs)
	In.	mm	ln.	mm	PSI	Bar	PSI	Bar
1811-04	1/4	6.35	.485	12.30	3,000	207	12,000	827	1-1/4	6.6
1811-05	5/16	7.94	.610	15.49	3,000	207	12,000	827	1-3/4	10.1
1811-06	3/8	9.53	.660	16.76	3,000	207	12,000	827	2-1/2	13.0
1811-08	1/2	12.70	.880	22.35	3,500	207	12,000	827	3-1/2	19.7

Find the Right Hose for Your Needs

At Dyna Flex, we’re committed to providing top-quality hoses tailored to meet the diverse needs of your applications. Whether you're interested in our standard products or looking for a custom solution to address specific requirements, we’re here to help you take the next step with confidence.

Reach out to us today to explore how our expertise and extensive product range can enhance your operations. Contact us for more information, personalized recommendations, or to discuss custom options that fit your unique needs.
